By David Crane
david (at) defensereview (dot) com
May 25, 2015
Here at DefenseReview (DR), we particularly appreciate tactical hardware and technology that give general infantry (or, ground infantry) and military Special Operations Forces (SOF) assaulters/operators better situational awareness at the squad level and enable them to do their respective jobs better and safer. The new Prox Dynamics (also written proxdynamics) PD-100 Black Hornet PRS (Personal Reconnaissance System) is just such a piece of hardware. The Black Hornet “nano UAS”, or “nano air vehicle”, is essentially a palm-sized micro helicopter UAS/UAV/drone aircraft that provides infantry soldiers with “cargo pocket ISR (Intelligence, Surveillance & Reconnaissance)” capability at the squad level, including both day AND night ISR capability.

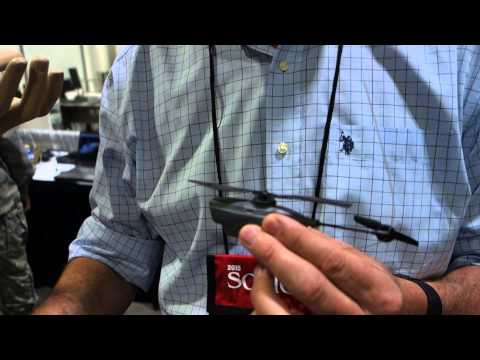

During our discussion with him at SOFIC 2015 (Special Operations Forces Industry Conference 2015), Prox Dynamics General Manager Arne Skjaerpe referred to the PD-100 Black Hornet as a “soldier-borne sensor” (catchy), which is appropriate since an infantry soldier or SOF operator can carry two “birds” in a clamshell polymer holster on his hip and rotate between the two birds as necessary, recharging a spent bird in the clamshell holster by 90% within 30 minutes while the other bird is flying. By the way, you can also just stuff the holster, or “base station” as the company calls it, in your jeans pocket or cargo pants pocket, thus the term “cargo pocket ISR”.
Instead of carrying two daytime birds with daylight cameras for virtually continuous daytime reconnaissance, the operator can opt for a daytime bird and a nighttime bird with a thermal/IR (InfraRed) camera, or two thermal/IR birds for virtually continous nighttime recon and surveillance. DR forgot to ask whether or not a SWIR (Short-Wave InfraRed) camera can be integrated into the Black Hornet PRS nano UAS. While we were walking the floor, we ran into the good people at UTC Aerospace Systems /Sensors Unlimited Products and learned a little bit about their rather impressive SWIR products’ capabilities. So, we’re curious to know just how much they can miniaturize it, and if they can do it to the point that it could be integrated into the Black Hornet nano helo UAS. But we digress.
Since the PD-100 Black Hornet’s electrically powered and incredibly small, it’s both virtually silent and invisible in the battespace, particularly at night. Even during the day, the Black Hornet’s grey color scheme will make it very hard to visually detect. If it were detected, the enemy would either have to have a skilled shotgunner or radio jammer (or hacker) to bring it down.
The birds have up to 25 minutes flight time on a full charge, fly at about 5 meters per second, and can achieve a digital datalink beyond 1500 meters line-of-sight. The operator can opt for visual navigation via video, or autonomous GPS navigation, and the bird is capable of proximity surveillance. The birds can shoot and stream live video and still shots, and they can also hover and stare at a target.
Oh, and the whole system weighs only 1.3 kilograms, all in, including the stick-style remote controller, torso-mounted video screen, clamshell holster and two birds. So, it’s pretty light.
Unfortunately, Defense Review didn’t get to see the Black Hornet actually fly in the hall, but you can see it flying in the second/bottom video below.
The following information on the PD-100 Black Hornet PRS comes directly from the proxdynamics website:
PD-100 BLACK HORNET PRS
The PD-100 is the first airborne and commercially available Personal Reconnaissance System. It provides end users with a highly mobile sensor system providing an immediate Intelligence, Surveillance and Reconnaissance capability.
Black Hornet nano air vehicles
The Black Hornet nano air vehicles are inherently safe and pose virtually no risk to other air vehicles or personnel, allowing the system to be operated almost anywhere at any time without prior airspace coordination. The Black Hornet’s small size and electric motors makes it virtually inaudible and invisible beyond short distances.
– Rotor span 120 mm
– Mass 18 g including cameras
– Maximum speed 5 m/s
– Endurance up to 25 minutes
– Digital data link beyond 1500 m line-of-sight
– GPS navigation or visual navigation through video
– Autopilot with autonomous and directed modes
– Hover & Stare, preplanned routes
– Steerable EO cameras (pan/yaw and tilt)
– Live video and snapshot images
– Search and rescue
– Reconnaissance in confined areas
– Look behind, between and below obstacles
– Birds eye view for situational awareness
– Object identification
– Proximity surveillance
– Crowd control
– Inspect nuclear installations
– Check chemical plants after incidents and accidents
– Transportable – complete system fits inside a pocket
– Ready to fly – airborne within one minute
– Fly it anywhere – in confined areas and outdoors
– Stealth – small and inaudible
– Easy to operate – requires little training and no pilot experience
– Safe – represents no risks to other aircraft or personell
– Affordable – reusable or expendable
– 1.5 KM Digital Datalink
– Up to 25 Minutes Flight Time
– GPS-Guided Autopilot
– Live Video and Snapshots
– 1.3 KG Total System Weight
– Two Air Vehicles Per System
Company Contact Info:
Prox Dynamics USA, Inc.
4801A Eisenhower Ave.
Alexandria, VA 22304
Phone: + 1-703-212-8960
E-mail: [email protected]
Prox Dynamics AS (International Headquarters)
Nye Vakåsvei 56
Phone: +47 66 77 91 00
Fax: +47 66 77 91 01
E-mail: [email protected]
Prox Dynamics AS
PO Box 22
VAT Registration No. 992 102 403
CEO: [email protected]
CTO: [email protected]
CFO: [email protected]
VP Sales and Marketing: [email protected]
VP Programs: [email protected]
Company Contact Info:
UTC Aerospace Systems
Sensors Unlimited Products
330 Carter Road, Suite 100
Princeton, NJ 08540
Phone 1: 609-333-8000
Phone 2: 609-333-8200
Email: [email protected]
